Smooth Bore Covoluted PTFE Hose

Lugar de origen:

PORCELANA

Nombre de la marca:

PASSION

Certificación:

FDA, RoHS, REACH

Número de modelo:

301

Contáctenos

Pida una cita

Detalles del producto

Pago y términos de envío

Cantidad de orden mínima

100m

Precio

Negociable

Detalles de empaquetado

Bien lleno de rayas de poli o como su solicitud.

Tiempo de entrega

Generalmente entre 10 y 20 días después de recibir el pago

Condiciones de pago

T/T, L/C, PayPal

Capacidad de la fuente

250.000 metros por mes

PRODUCTOS RELACIONADOS

Smooth Bore Covoluted PTFE Hose

Consiga el mejor precio

Tubo interno de PTFE de broca lisa para transferencia química en aplicaciones industriales

Consiga el mejor precio

Tubo interno de PTFE de broca lisa para transferencia química en aplicaciones industriales

Consiga el mejor precio

manguera trenzada de PTFE de broca lisa para resistencia a altas temperaturas

Consiga el mejor precio

Contáctenos

86-571-8102-3093

Contacto ahora

Descripción de producto

This PTFE hose refers to a highly specialized industrial hose engineered for conveying aggressive chemicals, high-purity fluids, or high-temperature media. Its core is constructed from PTFE (Polytetrafluoroethylene), a material renowned for its exceptional chemical resistance, wide temperature tolerance, and non-stick properties. The "Smooth Bore" feature indicates that the inner liner is seamless and flat, which minimizes pressure drop, prevents clogging, and allows for easy cleaning—critical for sanitary or precise transfer applications. The external "Convoluted" structure, with its distinct bellows-like folds, provides excellent flexibility, allowing the hose to bend and route easily in tight spaces without kinking, while also offering superior resistance to mechanical stress and vibration. This combination makes it an ideal solution for demanding sectors such as chemical processing, pharmaceuticals, food and beverage, and semiconductor manufacturing.

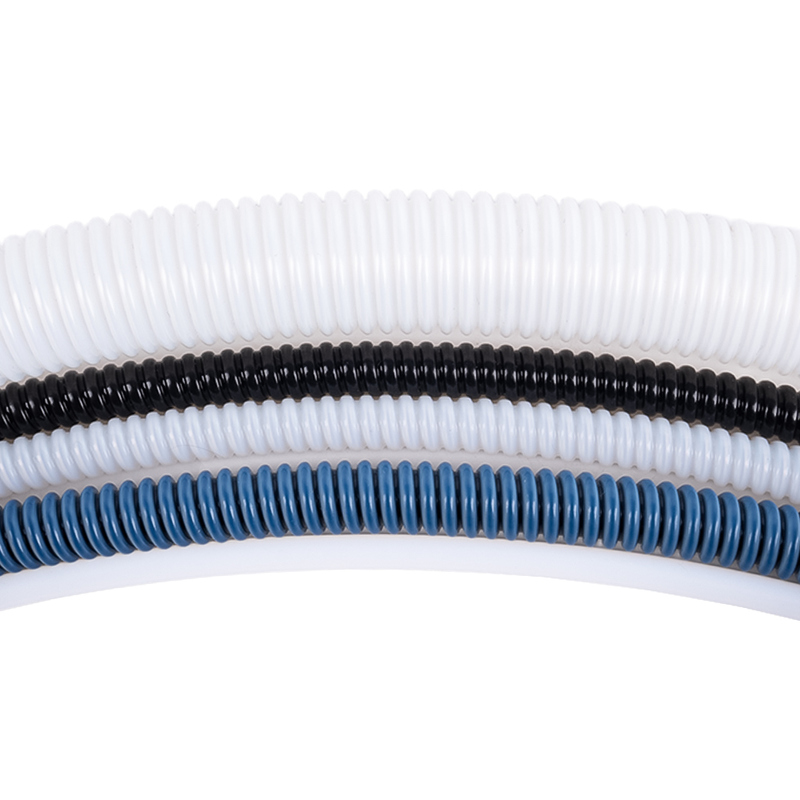

Smooth Bore Covoluted PTFE Hose 0

Tube: PTFE

Reinforcement: SS304/316 wire

Temperature: -65C to 260C

Transfer Medium: High temperature oil/water, steam, strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue, etc.

ID. (inch)	ID.(mm)	OD (mm)	Thickness (mm)	WP (bar)	BP (bar)	Min. Bend Radius (mm)
3/8"	10	13.5	1.4	90	360	25
1/2"	13	16.6	1.6	83	333	28
5/8"	16	20.5	1.8	75	300	50
3/4"	19	23.7	2	74	296	63
1"	25.4	30.8	2	59	236	90
1-1/4"	32	37	2	38	150	150

Application:

Our Smooth Bore Convoluted PTFE Hose is engineered for demanding applications. It features a non-stick, chemically inert PTFE core with a seamless inner wall to ensure uncontaminated flow and easy cleaning. The exterior convolution provides superior flexibility for easy routing in tight spaces. Ideal for transferring aggressive chemicals, high-purity fluids, and high-temperature media across various industries.

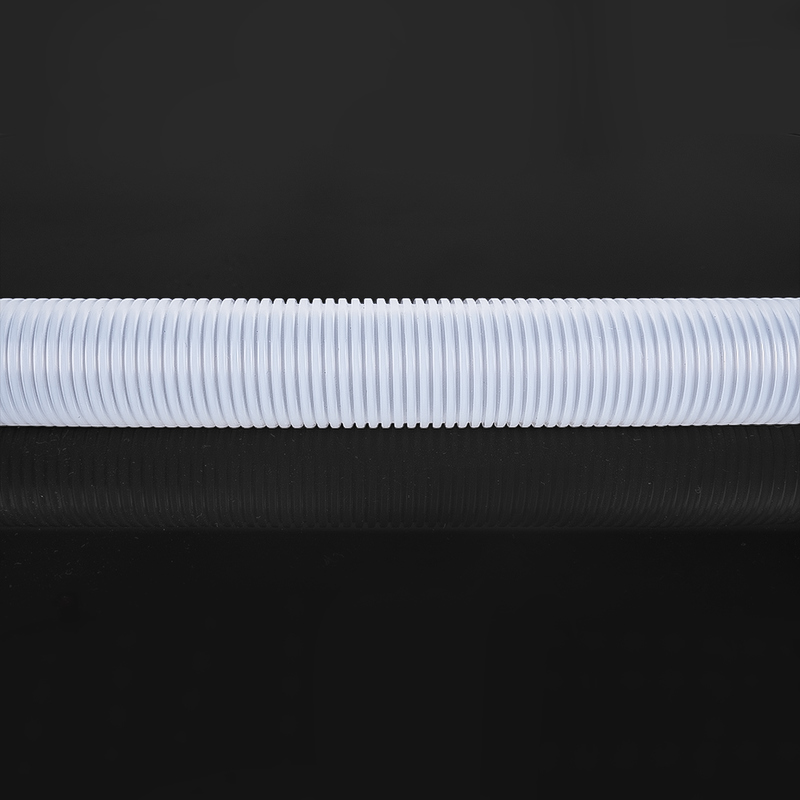

Smooth Bore Covoluted PTFE Hose 1

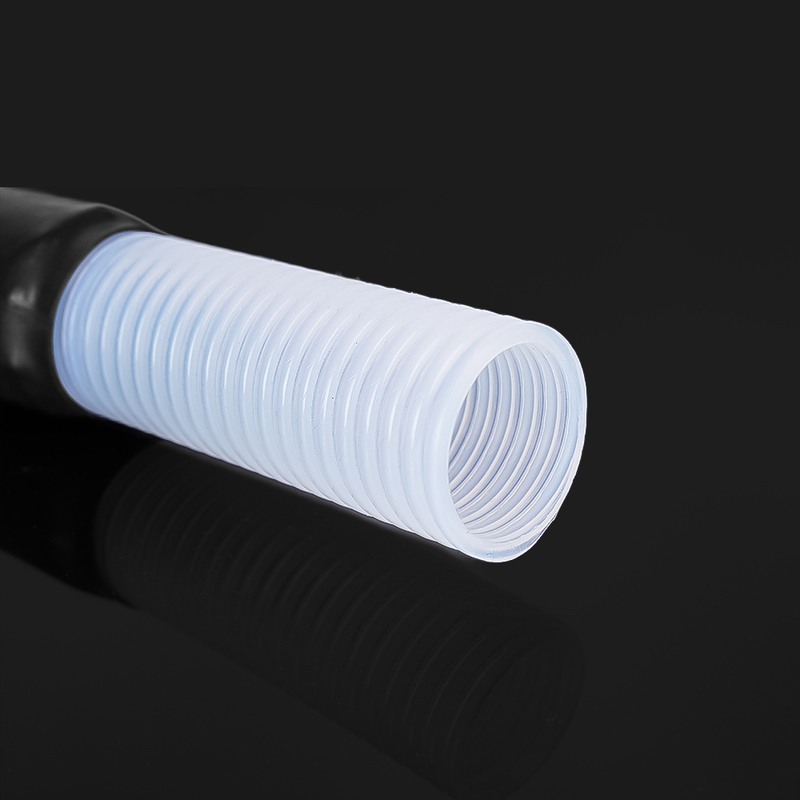

Smooth Bore Covoluted PTFE Hose 2
